"BARKHAN-4+" - blocker, powerful, street, directional
Suppression range: up to 80 meters. The radiation pattern of antennas: Yes, 90 degrees. Suppressed standards: GSM-900/1800, E-GSM, 3G, 4G (2500), LTE (800). Street performance.

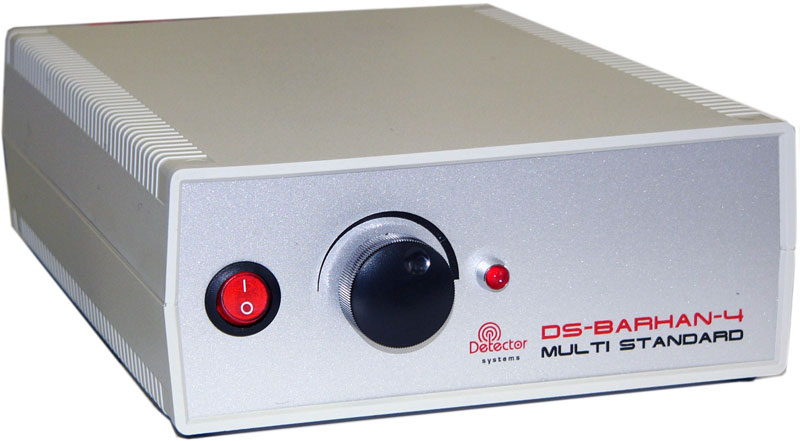

Barkhan-4+ is a rectangular block, with an external power supply of 24 V, without external antennas, which is attached to the outside of the building to block cellular communication inside the building. It is most often used by the penitentiary services-the Federal Penitentiary Service.
10 REASONS TO BUY A DUNE 4+
- Blocking of all known cellular communication standards: GSM 900/1800, 3G, 4G (2500), LTE (800).
- Barkhan 4+ blocks communication in difficult conditions: in the immediate vicinity of the base station, in buildings and premises where reinforced concrete partitions are used.
- No external antennas, allows you to choose the optimal installation location.
- 1 year warranty.
- The range adjustment will allow you to block communication only within the required territory.
- Outdoor version with the use of directional antennas, allows you to block the operation of cellular communication indoors, while the device is installed outdoors.
- Round-the-clock operation in a wide range of ambient temperatures -40?C to +45?S.
- Four independent channels with their own antenna systems.
- Sanitary and Epidemiological Certificate of the Russian Federation.
- Easy to install and use.
TECHNICAL PARAMETERS
|
Maximum suppression radius |
80 meters |
|
Overall dimensions |
380x370x140 mm |
|
Suppression of standards |
|
|
Basic equipment |
GSM 900 (925-960 MHz) |
|
GSM 1800/1900 (1805-1880 MHz) |
|
|
4G (2500 MHz); LTE (800 MHz) |
|
|
3G (2100-2170 MHz) |
|
|
Maximum output power |
Of 36.3 W |
|
Maximum power consumption |
25W |
|
Continuous operation time at temperatures from -40 to +40C |
not limited |
|
Wired remote control |
there is |
|
Wireless remote control |
option |
|
Adjusting the output signal power |
at least 13dB (20 times) |
|
Directional pattern |
90 degrees |
|
Antenna arrangement |
internal |
SCOPE OF DELIVERY:
- 1pc generator.
- Power supply unit with 1pc control module.
- Fasteners
- Instructions, passport 1 piece.
- Packing is 1 piece.
